Milestone 2

1. Kinematics

The TurtleBot 4 follows a differential drive kinematic model, mapping wheel velocities $(v_r, v_l)$ to state updates $(x, y, \theta)$:

Two robots are deployed with different velocity profiles:

• Robot 1, The Rabbit (Slow): $v_r, v_l \leq v_{max,1}$
• Robot 2, The Wolf (Fast): $v_r, v_l \leq v_{max,2}$

where $L = 0.235$ m is the wheelbase of the TurtleBot 4.

2. System Architecture

I. Detailed Computational Map

Topics:

Services / Actions:

flowchart LR
    subgraph SENSORS ["Hardware / Sensors"]
        LIDAR([RPLiDAR])
        CAM([OAK-D Camera])
        ODO([Wheel Odometry])
    end

    subgraph ACTIVE ["✅ Active This Milestone"]
        TELEOP[teleop_twist_keyboard]
        SLAM[slam_toolbox]
        YOLO[yolo_detector]
    end

    subgraph PENDING ["⏳ Implemented — Pending AMCL"]
        GEOFENCE[geofence_node]
        WOLF_FSM[wolf_fsm]
        RABBIT_FSM[rabbit_fsm]
        CARROT[carrot_manager]
        REFEREE[referee_node]
    end

    TB[TurtleBot 4\nTest Robot]
    RVIZ[RViz2]

    LIDAR -->|/scan| SLAM
    SLAM -->|/map| RVIZ
    CAM -->|/camera/image_raw| YOLO
    ODO -->|/odom| GEOFENCE

    TELEOP -->|/cmd_vel_unstamped ✅| TB

    YOLO -->|/wolf/vision| WOLF_FSM
    YOLO -->|/rabbit/vision| RABBIT_FSM

    SLAM -.->|/amcl_pose ❌ not publishing| GEOFENCE
    RVIZ -.->|/clicked_point ❌ not publishing| GEOFENCE

    GEOFENCE -->|/wolf/geofence| WOLF_FSM
    GEOFENCE -->|/rabbit/geofence| RABBIT_FSM
    GEOFENCE -->|/geofence/boundary| RVIZ

    WOLF_FSM <-->|pursuit target| CARROT
    WOLF_FSM -->|/cmd_vel| TB
    RABBIT_FSM -->|/cmd_vel| TB

    WOLF_FSM -->|pose + state| REFEREE
    RABBIT_FSM -->|pose + state| REFEREE
    REFEREE -->|/game/state| RVIZ

II. Module Descriptions

This milestone focused on establishing the physical hardware communication pipeline before higher-level modules could be tested. The core modules developed so far are:

yolo_detector.py — Subscribes to the OAK-D camera topic and runs a trained YOLOv8 model to detect and classify the identification signs mounted on each robot. Outputs bounding boxes and class labels used to distinguish the Wolf from the Rabbit at runtime.

wolf_fsm.py — Implements the FSM governing the Wolf robot’s behavior. States include PATROL, CHASE, and BOUNDARY_STOP. Subscribes to /wolf/vision for perception events and /wolf/geofence for boundary violations. Publishes to /wolf/cmd_vel.

rabbit_fsm.py — Implements the FSM governing the Rabbit robot’s behavior. States include SEARCH, FLEE, and BOUNDARY_TURN. On detecting the Wolf via /rabbit/vision, the Rabbit executes a 180° turn and flees. Publishes to /rabbit/cmd_vel.

geofence_node.py — A full geofencing engine implementing a three-state control machine: SAFE, WARNING, and BREACH. Subscribes to /amcl_pose using a TRANSIENT_LOCAL / RELIABLE QoS profile to match AMCL’s publisher. The zone boundary is defined as an arbitrary polygon (minimum 3 vertices) in the map frame, loaded from geofence_params.yaml. Position is tested using a ray-casting point-in-polygon algorithm. Boundary proximity is computed via closest-point-on-segment across all edges, with inward normals derived geometrically and verified against the polygon centroid. In WARNING state (within 0.5 m of boundary), corrective velocity is applied with a quadratic fade proportional to proximity. In BREACH state (outside polygon), full velocity override drives the robot back inward. In SAFE state, the node stays silent and Nav2 drives normally. Publishes a color-coded MarkerArray to /geofence/boundary for RViz visualization (green / orange / red by state).

carrot_manager.py — Implements a carrot-chasing pursuit strategy for the Wolf. Given the Rabbit’s last known position, computes intermediate waypoints that drive the Wolf toward the target while respecting geofence constraints.

referee_node.py — Arbitrates game state. Subscribes to both robots’ poses and geofence events, evaluates capture conditions (Wolf within 0.4 m of Rabbit), and publishes game outcome to /game/state.

Note: geofence_node.py, carrot_manager.py, rabbit_fsm.py, and referee_node.py are implemented but could not be tested end-to-end this milestone due to unresolved /amcl_pose and /clicked_point issues (see Section 3.II). End-to-end integration testing is the primary goal for Milestone 3.

3. Experimental Analysis

I. Noise & Uncertainty Analysis

Hardware:

Hardware integration consumed the majority of this milestone’s effort. The following observations were made during physical robot operation:

LiDAR (/scan): Once the ROS 2 communication pipeline was established, LiDAR data streamed reliably into RViz. Scan quality was visually consistent with expected room geometry. No significant noise artifacts were observed during the indoor mapping session, which is expected given the structured environment (living room walls, furniture).

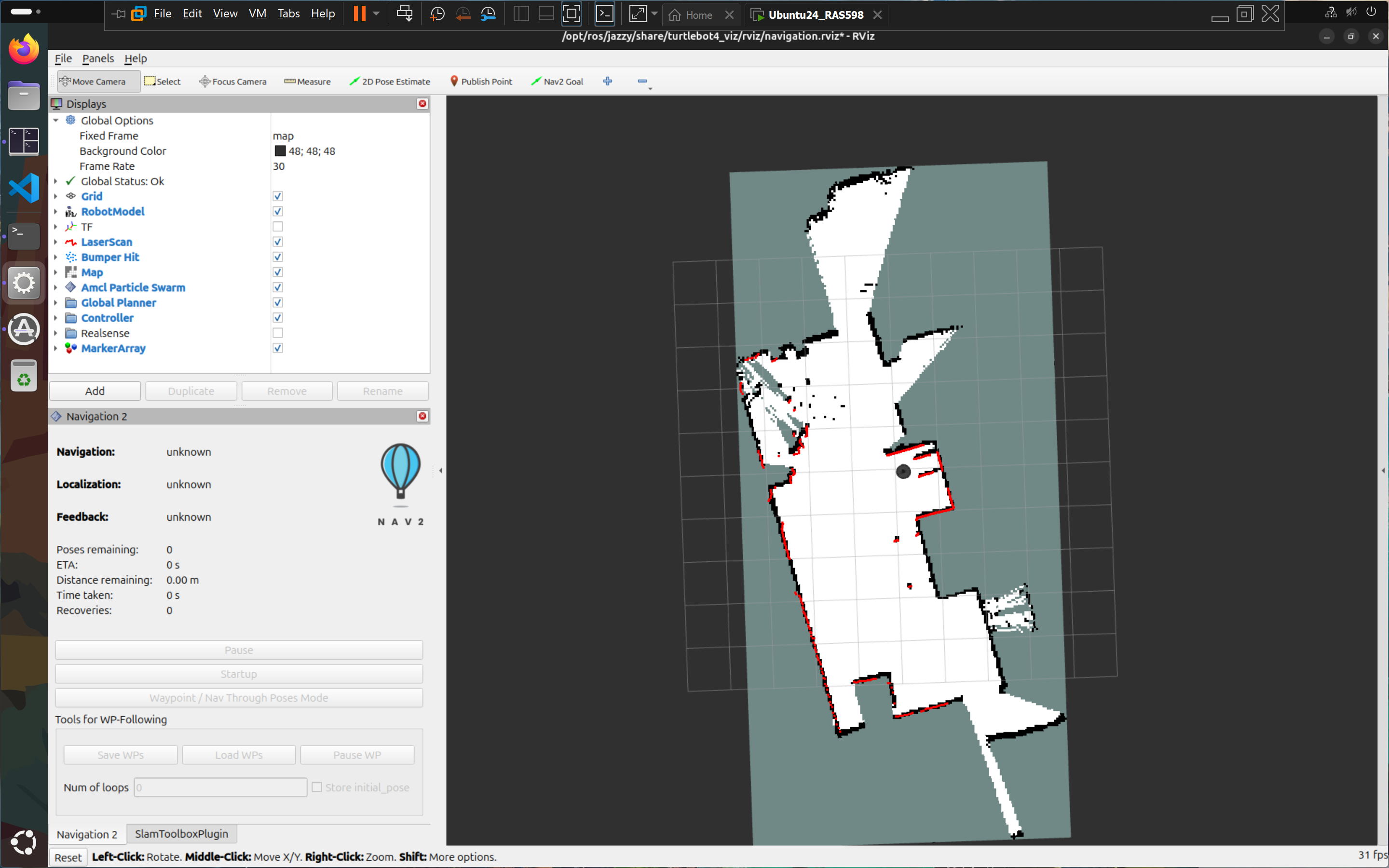

SLAM Map Quality: A map of the test environment was successfully generated and saved using SLAM Toolbox following the TurtleBot 4 mapping tutorial. The map captured room boundaries clearly. Some minor drift artifacts appeared at corners, consistent with expected odometric error accumulation over longer traversals — a known characteristic of wheel-encoder-based odometry on carpeted surfaces.

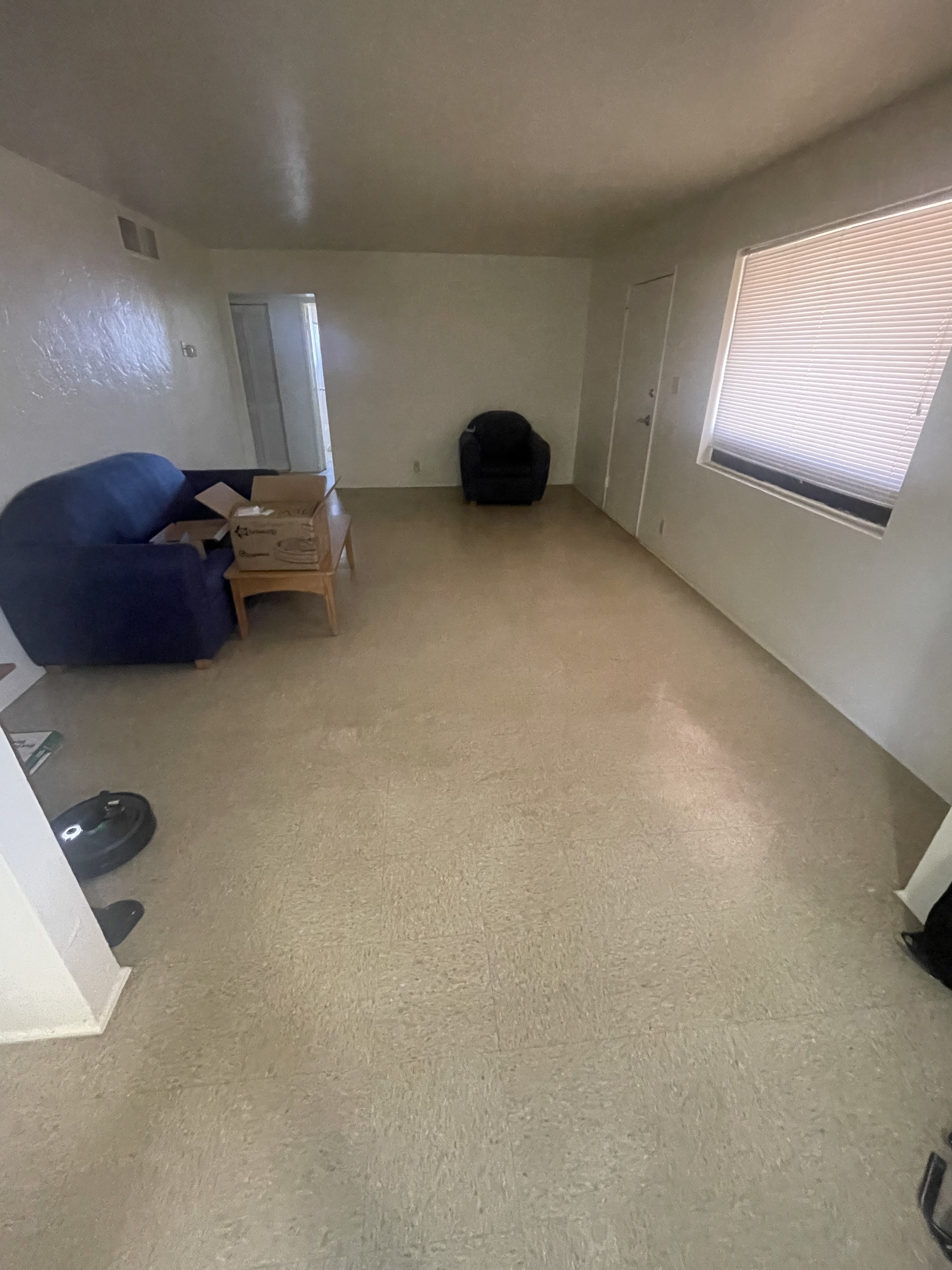

Living Room Mapped Living Room

Teleop Latency: After establishing the DDS discovery pipeline (see Section 3.II), teleoperation via teleop_twist_keyboard on the /cmd_vel_unstamped topic was responsive with no perceptible lag. This confirms the Fast DDS discovery server is functioning correctly for real-time command throughput.

YOLO Perception — Marker Detection:

A key perception milestone was achieved independently this sprint. Starting from just two source images — one stock photograph of a wolf and one of a rabbit — a custom YOLO detection model was trained that can reliably distinguish and label each robot’s identification marker in real time.

The core challenge the professor flagged in his feedback was angle robustness: a flat printed image mounted on a robot will be viewed from different distances, rotations, and perspective angles during gameplay. To address this, an aggressive offline augmentation pipeline (generate_sign_dataset.py) was built to synthetically expand the two source images into a full training dataset. Augmentations applied include:

• In-plane rotation (0°–360°)
• Horizontal and vertical flipping
• Perspective warping — simulating the image being tilted toward or away from the camera (z-axis flip / page-turn effect)
• Brightness and contrast jitter
• Gaussian blur and noise

The resulting model (yolov8n.pt / yolo11n.pt) was validated to correctly label the wolf marker as wolf and the rabbit marker as rabbit across a wide range of viewing angles, including near-perpendicular perspectives where the image is significantly foreshortened. It does not generalize to other objects — detections are tightly scoped to these two specific markers only, which is the desired behavior for this application.

Physical marker design: The printed images will be arranged in a triangular or square prism configuration and mounted vertically on each robot, ensuring at least one face is always visible to the opposing robot’s camera regardless of relative orientation.

Simulation:

Full simulation testing was deprioritized this milestone in favor of resolving the hardware connectivity issues that were blocking all physical robot work. Simulation will be used in Milestone 3 as a parallel testing environment for the behavior modules once /amcl_pose localization is confirmed working on hardware.

II. Run-Time Issues

This milestone encountered a significant cascade of hardware and networking failures. Each issue is documented below with the root cause identified and the resolution applied.

Issue 1: TurtleBot 4 failed to broadcast AP WiFi signal

After following the course setup guide (removing the wifis: block from 50-cloud-init.yaml to force AP mode), the robot powered on but did not broadcast the expected Turtlebot4 SSID. Connecting via Ethernet as a fallback also failed. The issue was escalated to the instructor, who resolved it directly on the hardware — the root cause could not be definitively identified, suggesting a firmware or SD card write anomaly.

Resolution: Instructor-assisted hardware fix. No software-side workaround was applicable.

Issue 2: VPN blocking ping to TurtleBot gateway

After the robot was repaired and broadcasting AP WiFi, USB tethering was used to share internet to the laptop while simultaneously connecting to the Turtlebot4 network. The TurtleBot’s default gateway 10.42.0.1 was visible in Windows routing tables but SSH connections and pings failed silently. Extensive troubleshooting of VMware network adapter settings was performed without success over several hours. The next day, the active VPN client was identified as the culprit — it was intercepting and dropping traffic to the 10.42.0.1 subnet.

Resolution: Disabling the VPN restored full connectivity. SSH into ubuntu@10.42.0.1 succeeded immediately.

Issue 3: VMware not routing traffic to TurtleBot

Even after VPN was disabled, the Ubuntu VM running in VMware could not reach the robot. ping 10.42.0.1 from inside the VM failed. Windows host could ping successfully.

Resolution: In VMware’s network adapter settings, the VM was configured to bind exclusively to the Mediatek WiFi adapter (the adapter connected to the Turtlebot4 SSID) rather than allowing VMware to auto-select adapters. After this change, the VM could ping and SSH into the robot.

Issue 4: ROS 2 topics not visible on the Ubuntu VM

With SSH working, ros2 topic list in the SSH terminal (on the robot) showed all expected topics. However, running ros2 topic list on the Ubuntu VM returned only /parameter_events and /rosout — the robot’s topics were invisible across the network. Changing ROS_DOMAIN_ID and other DDS settings did not resolve the issue.

Resolution: A teammate from another team shared a setup.sh script that configured the VM as a ROS 2 Super Client pointed at the robot’s Fast DDS Discovery Server:

export ROS_DOMAIN_ID=0
export RMW_IMPLEMENTATION=rmw_fastrtps_cpp
export ROS_DISCOVERY_SERVER=192.168.186.3:11811
export ROS_SUPER_CLIENT=True

After sourcing this script and running ros2 daemon stop && ros2 daemon start, the full topic list appeared on the VM. Teleoperation and sensor data streaming were confirmed working.

Issue 5: /amcl_pose not publishing — geofence node blocked

After mapping was complete, the geofence node was launched. It subscribes to /amcl_pose with a TRANSIENT_LOCAL / RELIABLE QoS profile (required to match AMCL’s publisher) and runs a 10 Hz control loop that only activates once a pose is received. The topic remained silent — ros2 topic echo /amcl_pose returned nothing.

The likely cause is that the localization stack was never properly brought up with the saved map. The correct startup sequence requires:

ros2 launch turtlebot4_navigation localization.launch.py map:=your_map.yaml
ros2 launch turtlebot4_navigation nav2.launch.py

This was not completed in time during the session. Until AMCL is publishing, self.pose_received stays False inside the node and the control loop returns immediately — so the geofence node is functional but silently idle.

Status: Unresolved. Fixing the localization bringup sequence is the top priority for the next hardware session.

Issue 6: /clicked_point not publishing from RViz

The geofence workflow requires using RViz’s “Publish Point” tool to click polygon vertices on the map, with coordinates echoed from /clicked_point and then copied into geofence_params.yaml. Despite correctly adding the tool via Panels → Tool Properties → Add → Publish Point and clicking on the map, ros2 topic echo /clicked_point returned no output.

Status: Partially resolved. A set of polygon coordinates was obtained through a separate session and hardcoded directly into geofence_params.yaml (vertices at approximately (0.689, 2.39), (-3.58, 1.51), (-3.32, 0.159), (0.202, 0.899) in the map frame). The RViz tool issue is suspected to be a fixed-frame mismatch — if the RViz fixed frame is not set to map, clicked points are computed in an incorrect frame and silently dropped. This will be confirmed in the next session once AMCL localization is running.

III. Milestone Video

4. Project Management

I. Instructor Feedback Integration

II. Individual Contribution
